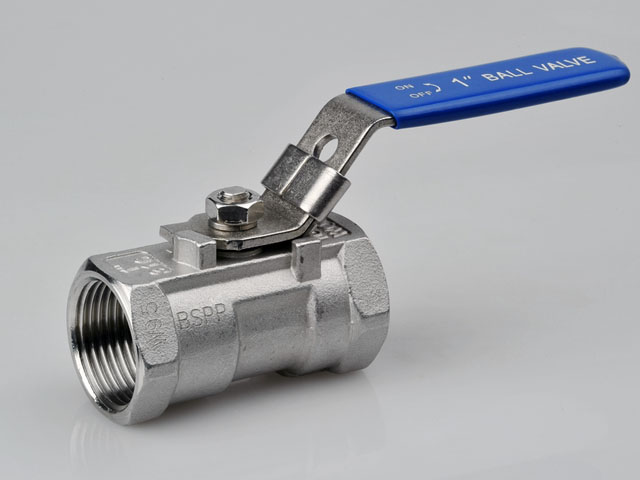

1PC thread ball valve
- Reduced port, 1/4″~3″ (DN8~DN80)
- W. P.:1000WOG (PN63)
- W. T.:-20℃ ~200℃
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- Locking device (option)
- Thread type: ASTM B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226

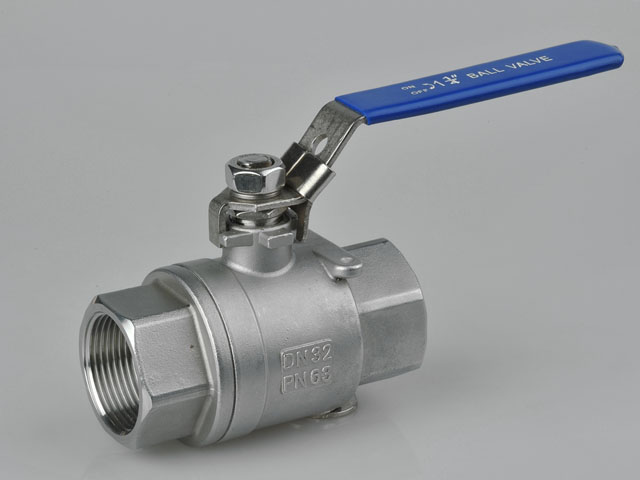

2pcs thread ball valve
- Full port, 1/4″~3″ (DN8~DN80)
- W. P.: 1000 WOG(PN63)
- W. T.:-20℃ ~200℃
- Investment casting
- Blow-out proof stem
- Locking device
- Tapped & drilled mounting pad (option)
- TA-Luft approved (option)
- Length conform to DIN 3202/4-M3-2006SM3(option)
- Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226

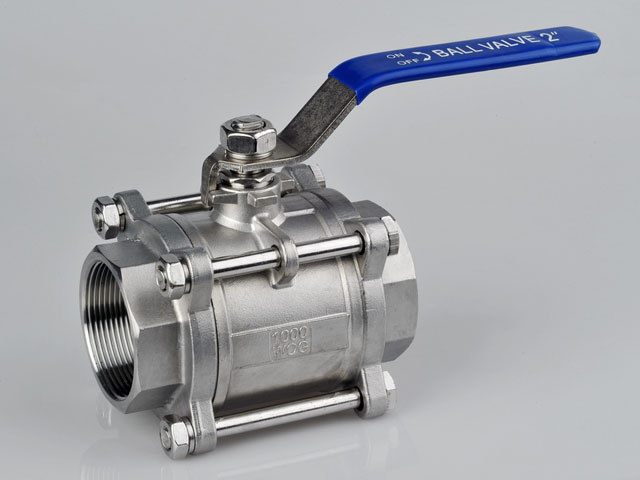

3pcs thread ball valve
- Full port, 1/4″~4″ (DN8~DN100)
- W. P.: 1000 WOG(PN63)
- W. T.:-20℃ ~200℃
- Investment casting
- Blow-out proof stem
- Anit-static device (option)
- Locking device
- ISO 5211 Mounting pad
- ISO 5211 direct Mounting pad – 2411D (option)
- Socket weld ends conform to ANSI B16.11 & DIN 3239 part2

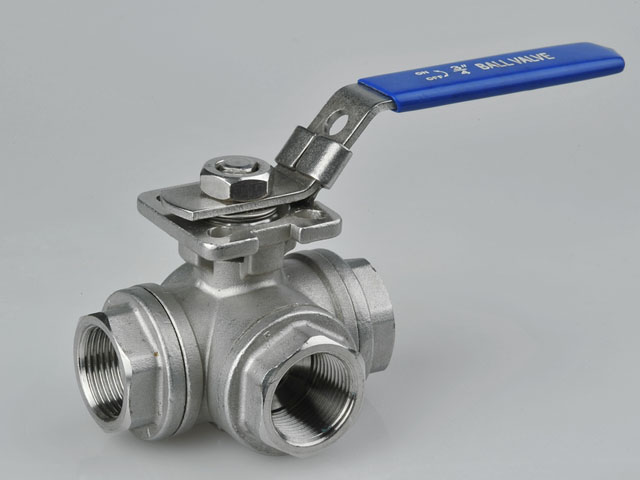

3ways thread ball valves
- L port / T port, 1/4″~2″ (DN8~DN50)
- W. P.: 1000 WOG (PN63)
- W. T.:-20℃ ~200℃
- Investment casting
- Blow-out proof stem
- Locking device
- Anti-static device (option)
- ISO 5211 mounting pad
- Thread type :ASME B1.20.1 (NPT) DIN2999 & BS21, ISO 7/1 & EN10226

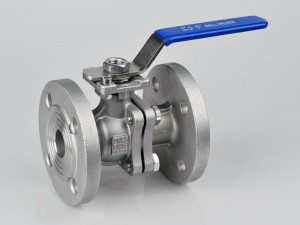

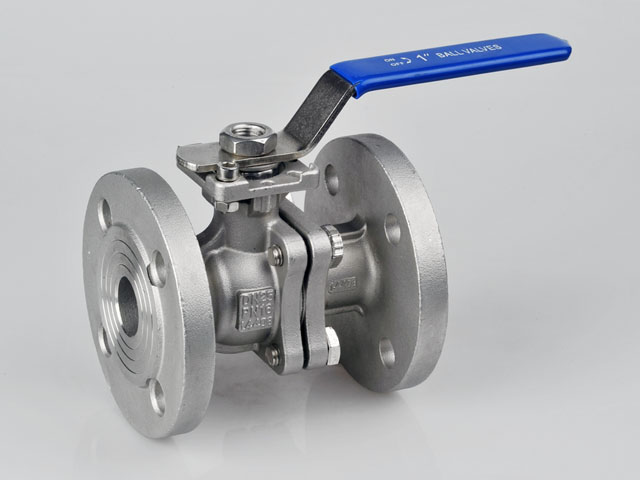

2pcs flanged ball valve
- Full port, 1/2″~12″ (DN15~DN300)
- W. P.: CLASS 150/300
- W. T.:-20℃ ~200℃
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- ISO 5211 Mounting pad
- Flange dimension: ASME B16.5
- Face to face: ASME B16.10

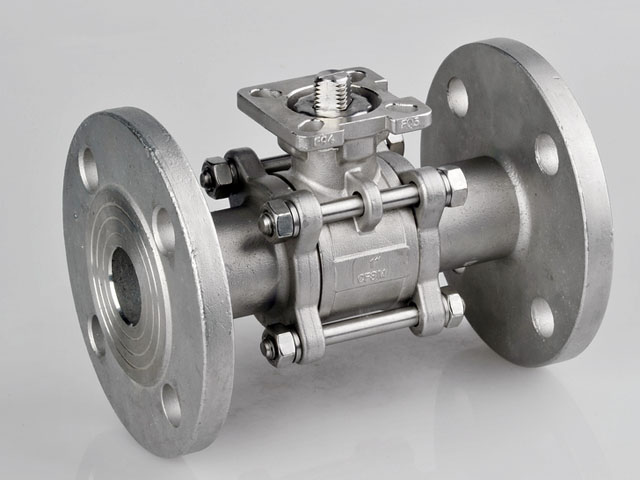

3pcs flanged ball valve
- Full port, 1/2″~4″ (DN15~DN100)
- W. P.: 1000 WOG (PN63)
- Flange End W.P.:PN40
- W.T.:-20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- Locking device
- ISO 5211 Mounting pad – 2010M (option)
- ISO 5211 Direct mounting pad – 2010D (option)
- Flange dimension : DIN 2501 – PN40
- Face to face: DIN 3202 – F1
